Telemetry Adapter iBTA01 I-BUS2
- Model
- FS-iBTA01
- Item no.
- FS099
- EAN
- 4046032114878
- Category
- Sensors and i-BUS

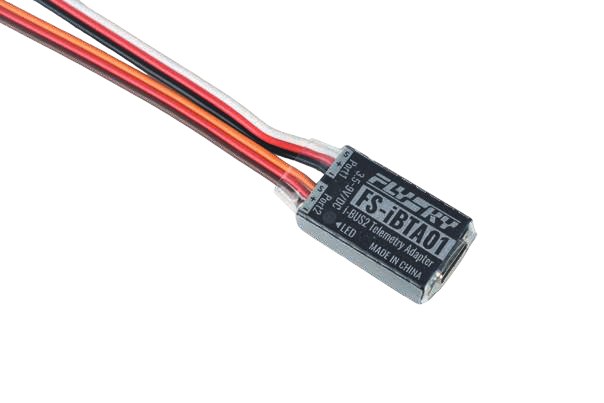

The FlySky iBTA01 is a compact i-BUS2 telemetry adapter that converts data from compatible devices (e.g., Hobbywing ESCs) into the i-BUS2 protocol and transmits it to your FlySky transmitter in real time. With a memory card (512 MB–8 GB), it also serves as a black box for data logging.
Specifications
| Model | FS-iBTA01 |
|---|---|
| Protocol | i-BUS2 |
| Operating voltage | 3.5–9 V DC |
| Dimensions/Weight | 28 × 15 × 6 mm / 6.8 g |
| Firmware update | Supported |
FS-iBTA01 is an i-BUS2 protocol-based telemetry adapter that converts supported external device telemetry data into i-BUS2 protocol data and transmits it back to the transmitter. With a memory card installed, it can also store received data to the card to realize the black box function.
Specifications
| Product model | FS-iBTA01 |
|---|---|
| Compatible receivers | i-BUS2 protocol series receivers |
| Compatible devices | HobbyWing ESCs with real-time data recording capabilities and a program port, such as XR8 Pro, XR8 Plus, XR10 Pro, MAX10 G2, Platinum V4 60A, 80A, 120A, Platinum V5 260A, etc. |
| Protocol | i-BUS2 |
| Supported memory cards | 512M ~ 8G |
| Operating voltage | 3.5-9V/DC |
| Dimensions | 28*15*6mm |
| Weight | 6.8g |
| Temperature range | -10°C~+60°C |
| Humidity range | 20%~95% |
| Firmware update | Yes |
