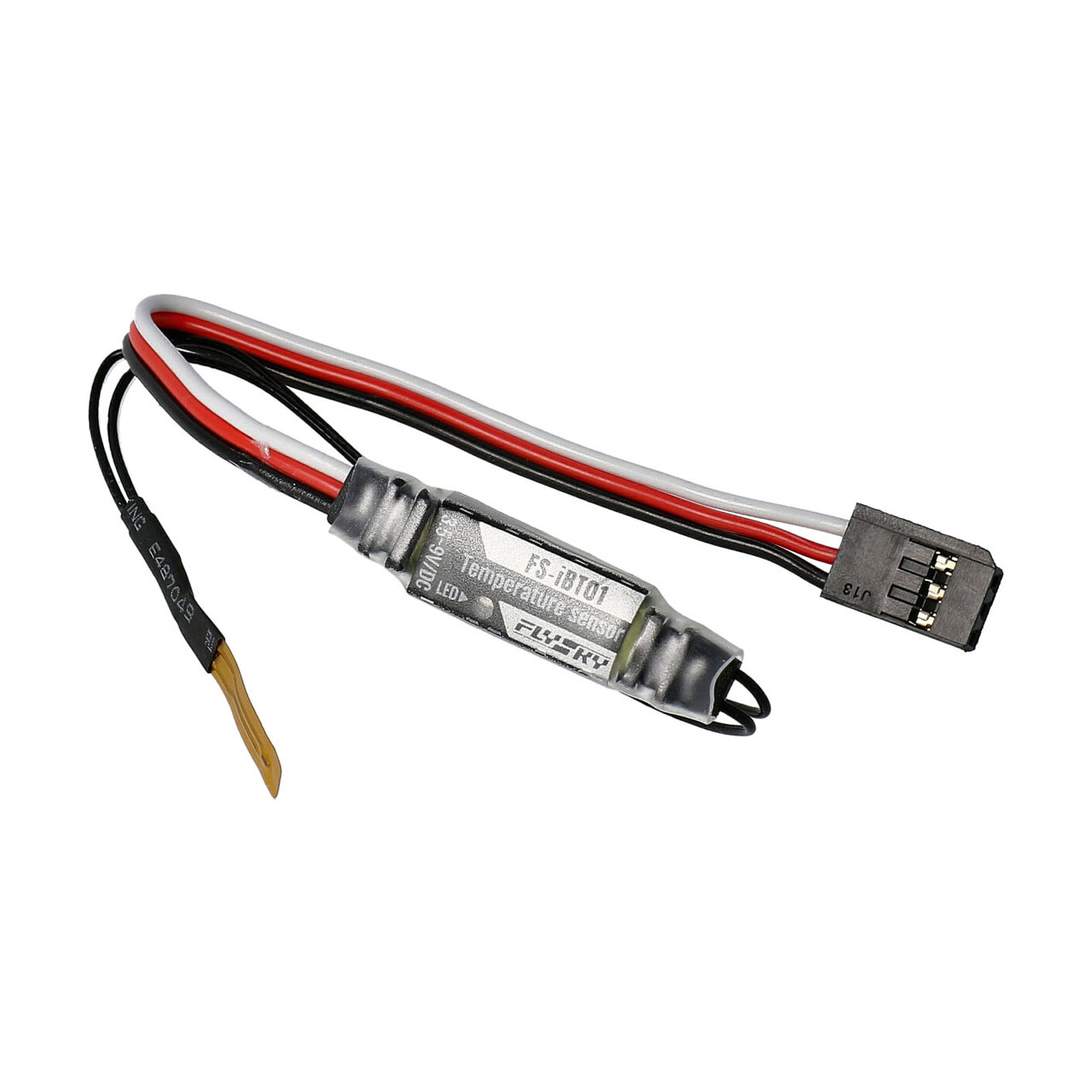

Temperature Sensor FS-iBT01 I-BUS2
- Model
- FS-iBT01
- Item no.
- FS035
- EAN
- 4046032096259
- Category
- Sensors and i-BUS
The compact temperature sensor FS-iBT01 supplements Flysky remote control with the AFHDS3 frequency protocol with useful functions. After the simple installation, the temperature can be tracked in real time, while the accuracy can be displayed to one decimal place. The sensor also offers protection against water according to the PPX6 standard.
Technical Specifications
| Input Voltage | 3.0-9V (DC) |
|---|---|
| Protocol | i-BUS2 |
| Measurement Range | -20°C to 200°C |
| Measurement Accuracy | 0.1°C |
| Temperature Range | -20°C to 85°C |
| Max. Humidity | 0%-95% |
| Dimensions | 295mm length |
| Weight | 4g |
| Compatible Models | Cars, boats, helicopters, fixed-wing aircrafts, etc. |
| Compatible Devices | Receivers with i-Bus2 Protocol (FTr8B, FTr12B, INr6-HS and other AFHDS3-compatible receivers) |
FS-iBT01 is a temperature sensor that adapts to Flysky AFHDS 3 enhanced receivers in compliance with the i-BUS2 protocol. It features compact design, easy installation, PPX6 waterproofing, real time temperature data return, high accuracy of temperature measurement (0.1°C), and adaption to a variety of models.
Specifications
| Compatible devices | Receivers that comply with the i-BUS2 protocol series (such as FTr8B, FTr12B, INr6-HS and other Flysky AFHDS 3 enhanced receivers) |
|---|---|
| Compatible models | Cars, boats, helicopters, fixed-wing aircraft, fighting robots, engineering vehicles, etc. |
| Protocol | i-BUS2 |
| Measurement accuracy | 0.1°C |
| Measurement range | -20℃ ~ +200℃ |
| Input power | 3.5-9V/DC |
| Working current | 20mA (5 V) |
| Online update | No |
| Water proof | PPX6 |
| Dimensions | 295mm (length) |
| Weight | 4.0g |
| Temperature range | -20℃ ~ +85℃ |
| Humidity range | 0 ~ 95% |
| Certifications | CE, FCC |
