i-BUS2 expandor sensor 7CH
- Model
- FS-iBH07
- Item no.
- FS038
- EAN
- 4046032096280
- Category
- Sensors and i-BUS
With its compact size, this i-BUS2 extension offers the possibility of occupying seven additional output channels. This can be particularly helpful when expanding the PWM channels or connecting multiple devices with an i-BUS2 identifier.
Technical Specifications
| Channels | 7 |
|---|---|
| Input Power | 3,5-9V (DC) |
| Adaptive Transmitter | with i-BUS2 signal output |
| Data Input | i-BUS2 |
| Data Output | PWM / i-BUS2 |
| Temperature Range | -10°C to 60°C |
| Max. Humidity | 20%-95% |
| Waterproof | PPX6 standard |
| Dimensions | 46.5x26.2x12.6mm |
| Weight | 11.2g |
| Suitable for | Cars, boats, aircrafts, etc. |

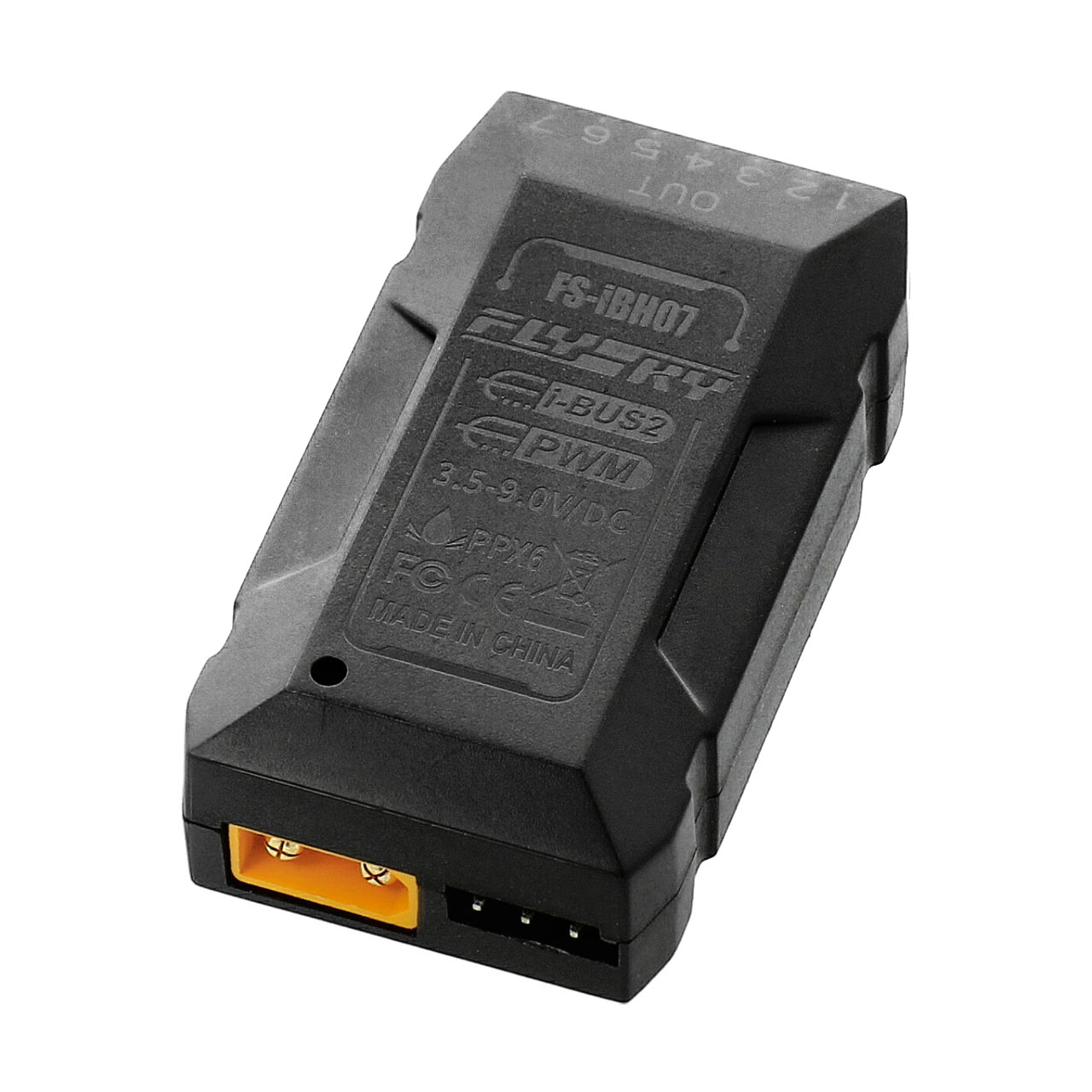

FS-iBH07 features a compact size. The expander provides 7 output channels, which can meet your requirements for PWM channel expansion or connection of multiple identifier i-BUS2 devices.
Specifications
| Adaptive transmitter | Products with i-BUS2 signal output function |
|---|---|
| Model type | Models of aircraft, cars, boats, robots, etc. |
| Channels | 7 |
| Input power | 3.5V~9.0V (DC) |
| Current | 15mA (5V) |
| Data input | i-BUS2 |
| Data output | PWM/i-BUS2 |
| Temperature range | -10℃—+60℃ |
| Humidity limit | 20%~95% |
| Water proof | PPX6 |
| Online update | No |
| Dimensions | 46.5mm*26.2mm*12.6mm |
| Weight | 11.2g |
| Certification | CE, FCC |
