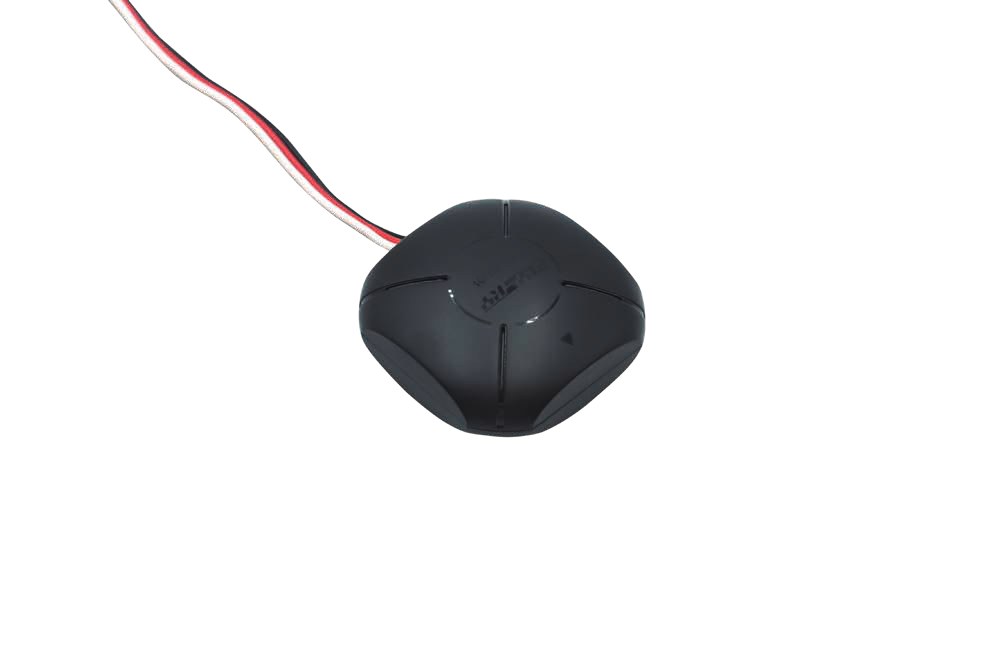

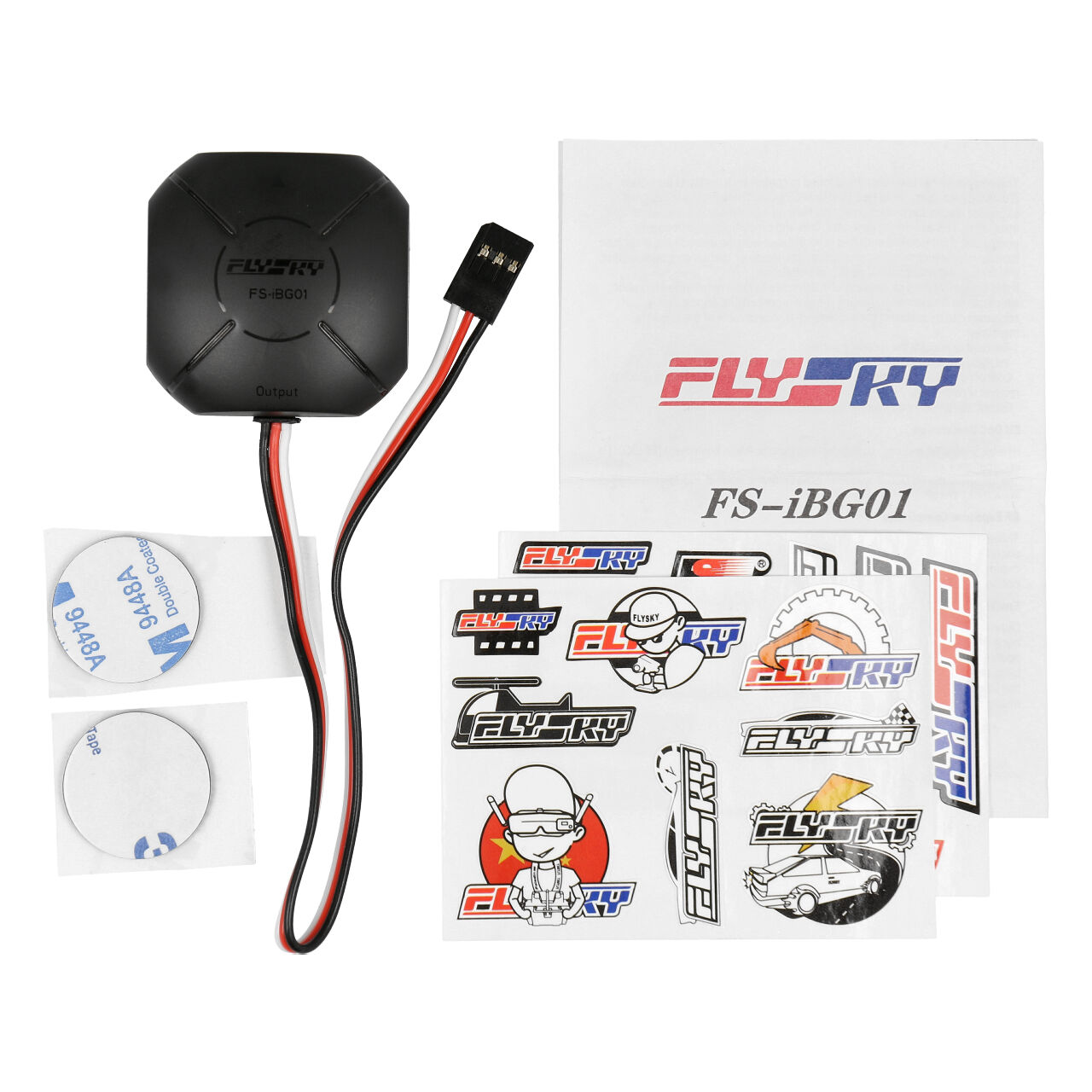

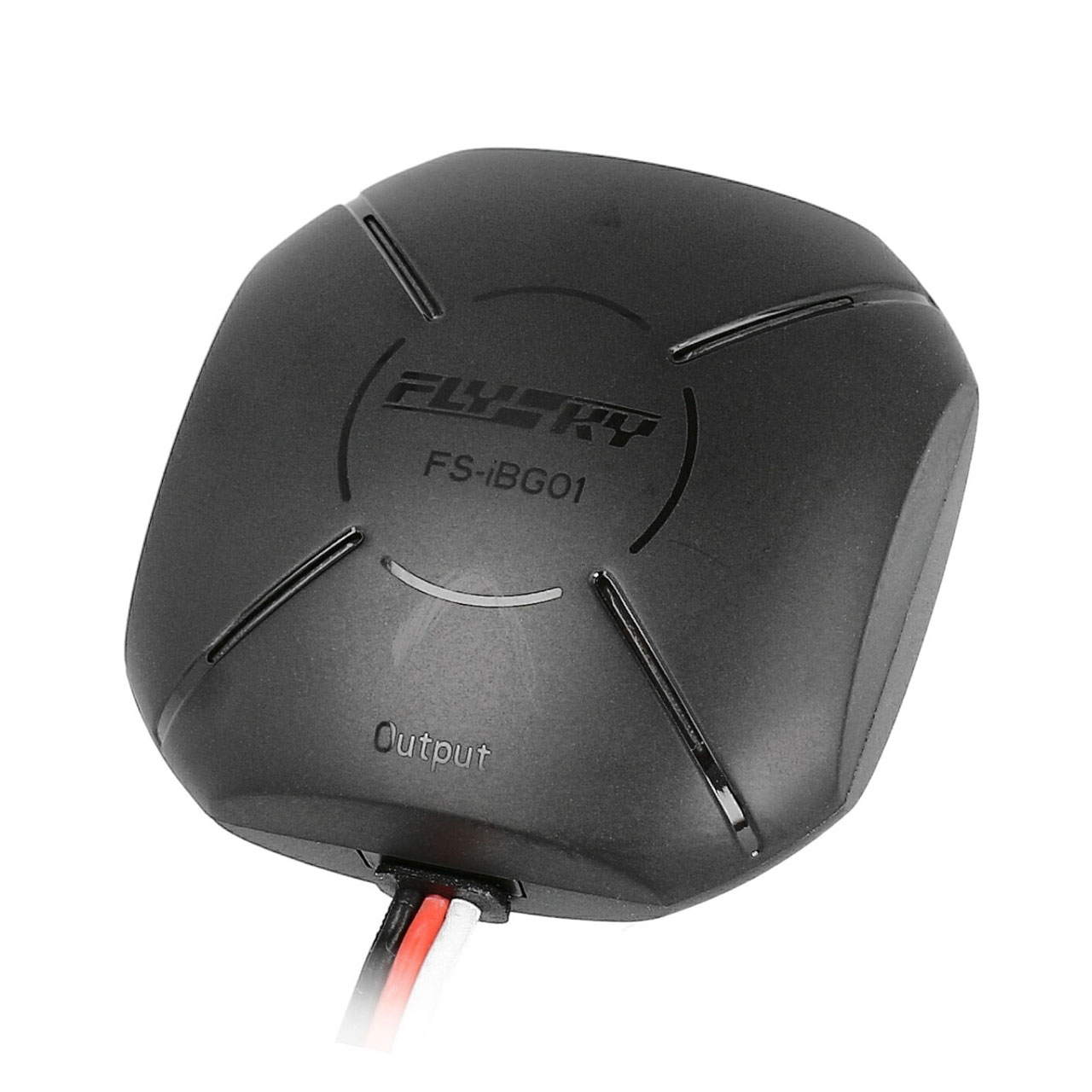

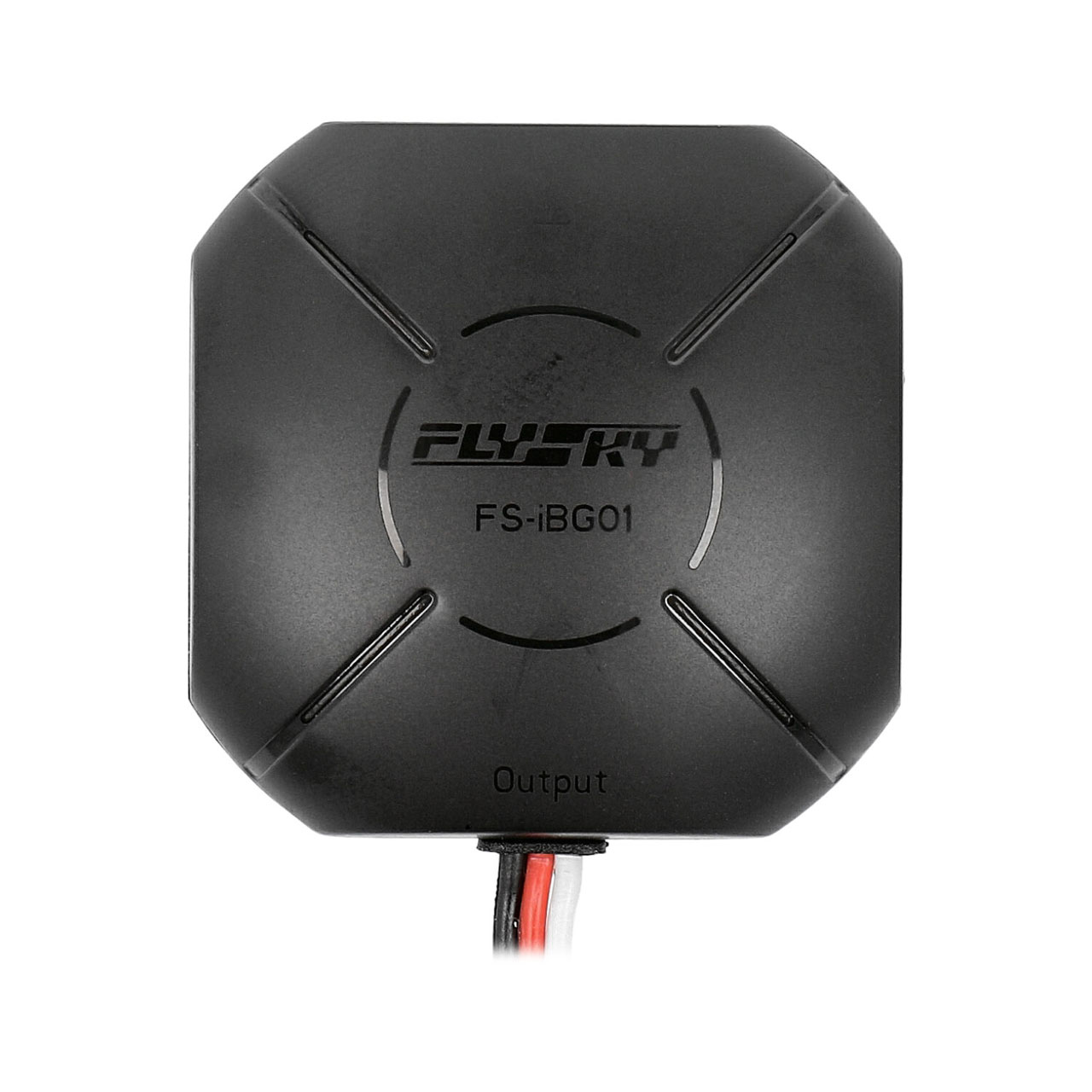

FS-IBG01 GPS Modul
- Model
- FS-iBG01
- Item no.
- FS065
- EAN
- 4046032100505
- Category
- Sensors and i-BUS
Supports GPS, BeiDou and other multi-satellite systems. It is internally integrated with the gyroscope, by using a high-precision GPS module in compliance with the latest Flysky i-BUS2 communication protocol.
Specifications
| Satellite systems supported | GPS / BeiDou |
|---|---|
| Model type | Boats, aircraft, robots, etc. |
| Adaptation to transmitter systems | Paladin series and enhanced receivers (such as FTr8B, etc.) |
| Tracking | -167dBm |
| Capture | -160dBm |
| Cold start | -148dBm |
| Hot start | -157dBm |
| Cold start time | Average 26s |
| Hot start time | Average 1s |
| Positioning accuracy | 0.3 degrees |
| Accuracy of speed measurement | 0.05m/s |
| Time accuracy | RMS 99% 30ns |
| Maximum height | 5000m |
| Acceleration | ≤4g |
| LED | Yes |
| Update frequency | 10Hz |
| Data format | i-BUS2 |
| Input power | 3.5-9V/DC |
| Temperature range | -10℃~+60℃ |
| Humidity range | 20%-95% |
| Dimensions | 40.2*50.2*18.5mm |
| Weight | 24.1g |
| Colour | Black |
| Certification | CE, FCC |
