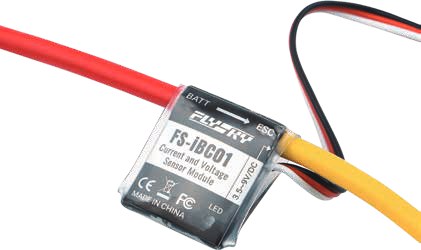

FS-iBC01, in compliance with the i-BUS2 protocol, is a current and voltage sensor adapted to Flysky AFHDS 3 enhanced version receivers.
Specifications
| Compatible devices | Receivers with the i-BUS2 protocol (such as FTr8B, FTr12B, INr6-HS and other Flysky AFHDS 3 enhanced version receivers) |
|---|---|
| Compatible models | Cars, boats, airplanes, etc. |
| Protocol | i-BUS2 |
| Input power | 3.5V~9.0V (DC) |
| Current measurement range | 0.5~400A (100~400A within 10s) |
| Voltage measurement range | 0~100V |
| Measurement capacity | 0mAh~32767mAh |
| Voltage measurement error | ±0.1V |
| Current measurement error (0~100°C) | 0.5~100A: <0.5A; 100~200A: <1A; 200~400A: <1% |
| Weight | 42g |
| Temperature range | -20°C~+85°C |
| Humidity range | 20%~95% |
| Certifications | CE, FCC |
