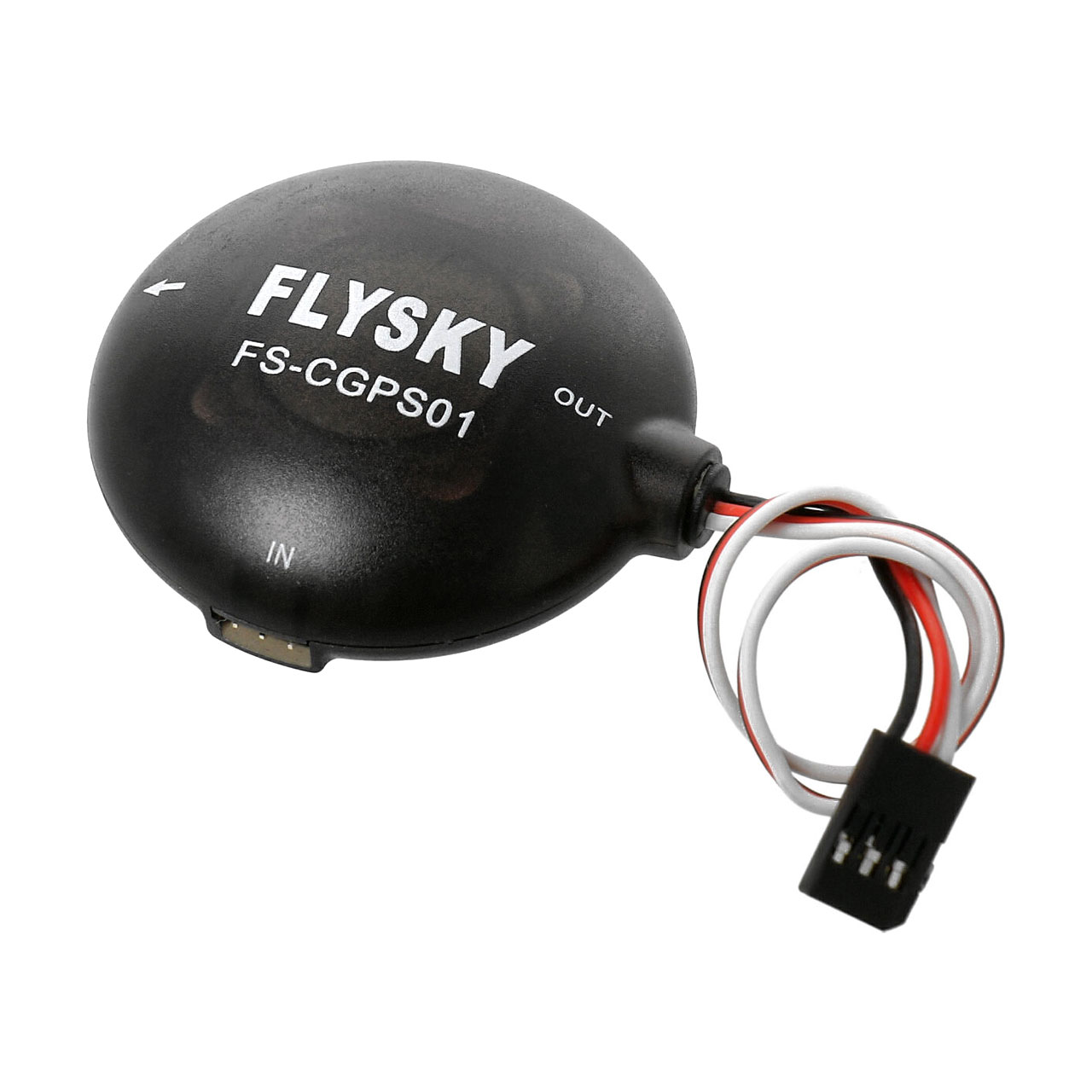

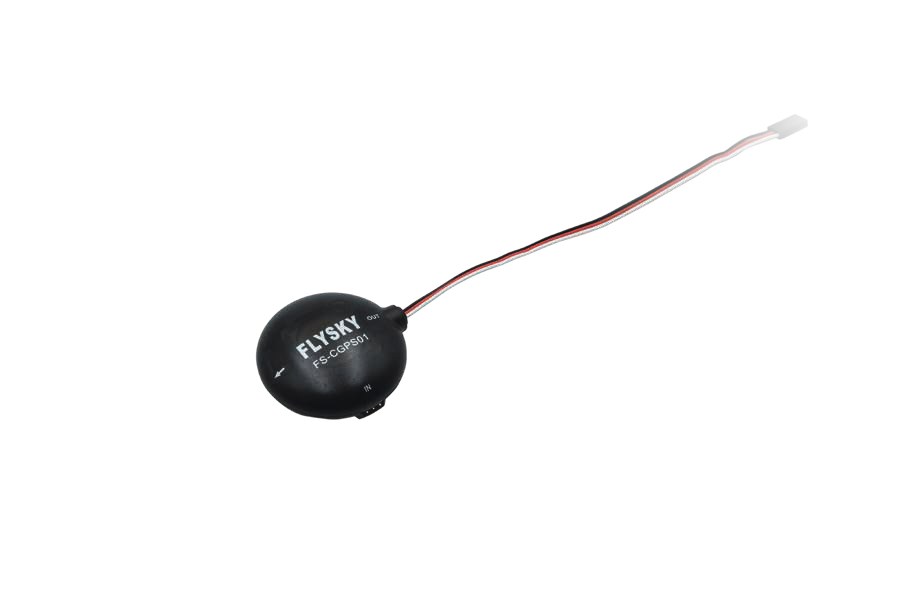

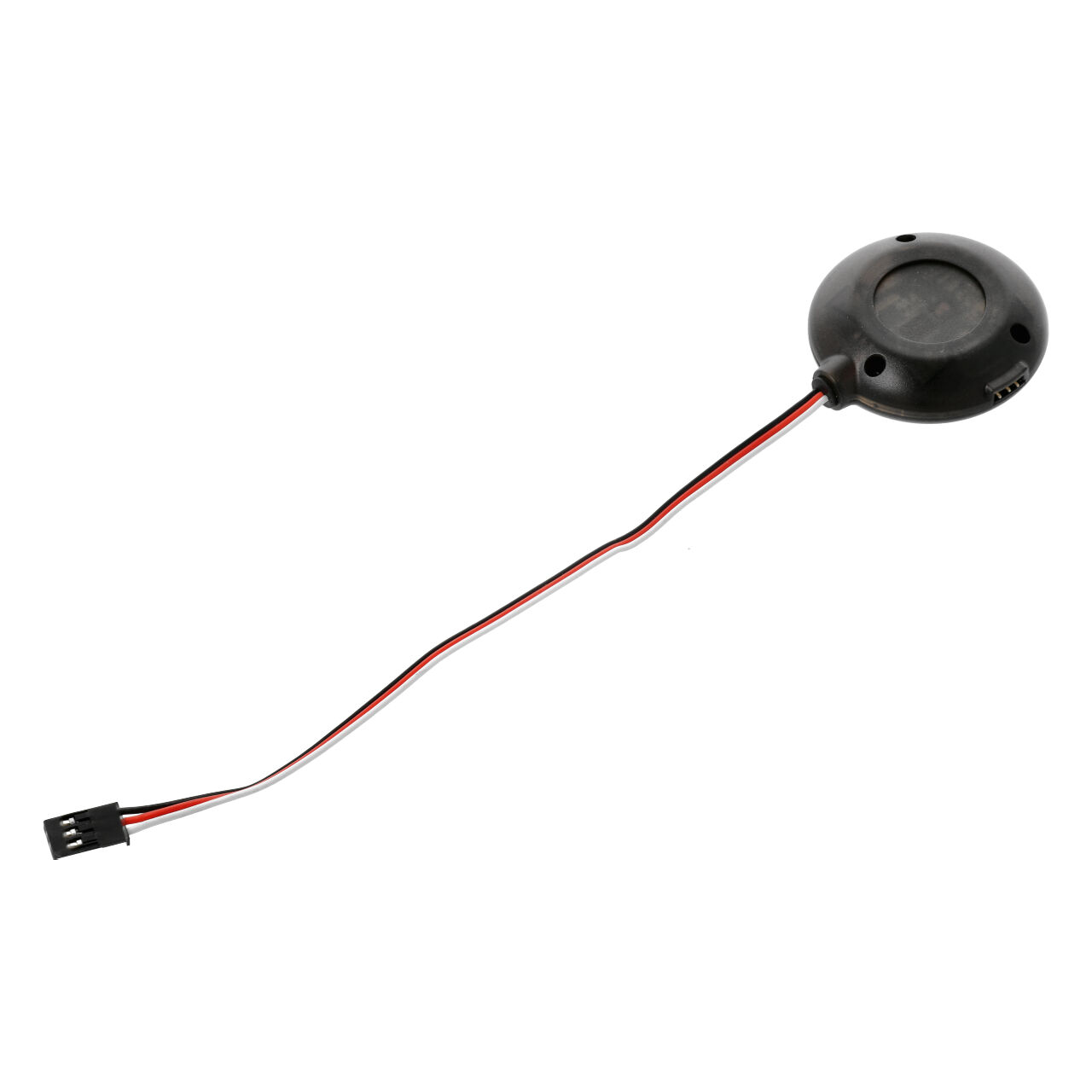

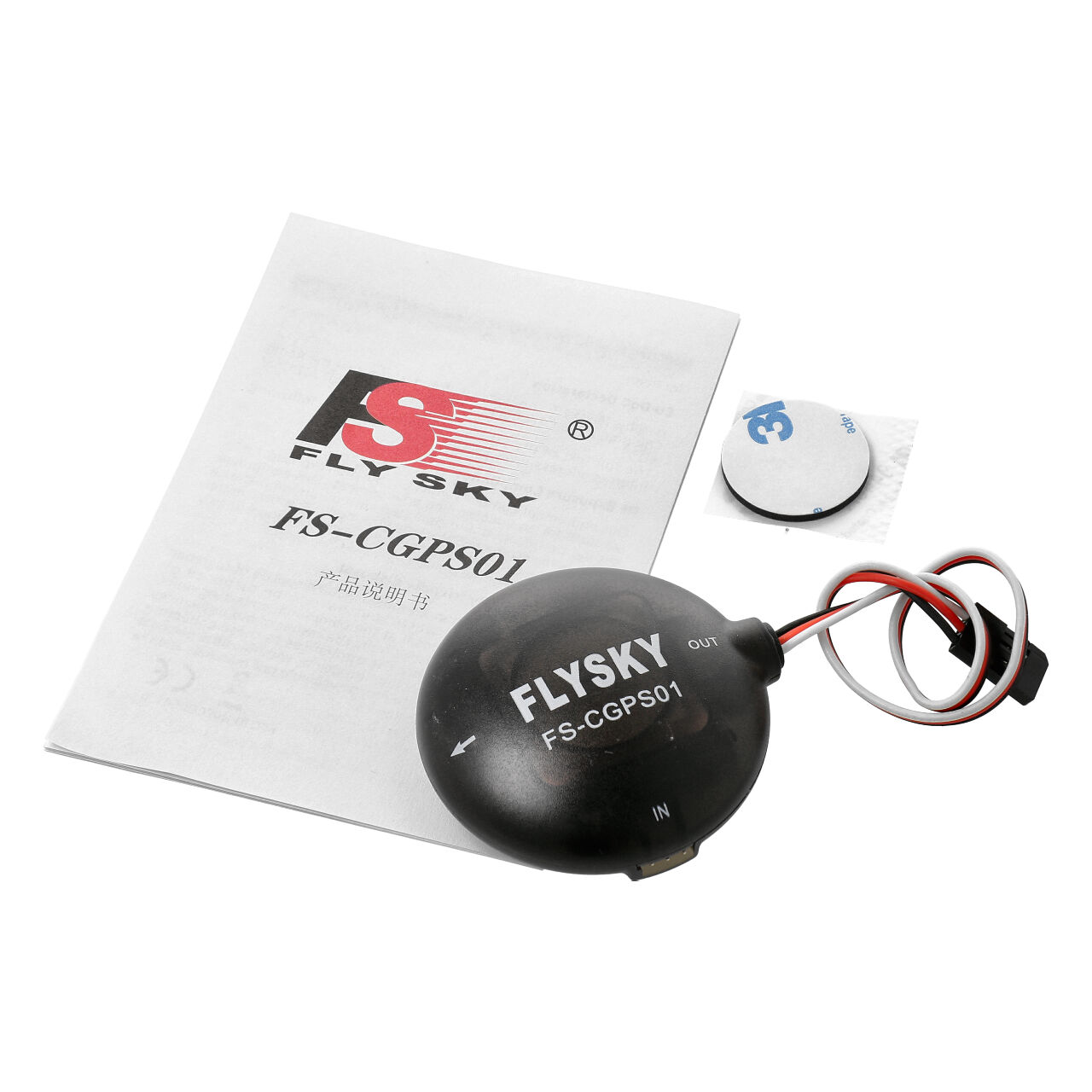

A GPS sensor with i-BUS support for use with the FlySky transmitter ST8.
Technical Specifications
| Channels | 72 |
|---|---|
| Input Power | 4-8.4V |
| Data Input | i-BUS |
| Data Output | i-BUS |
| Master Chip | NEO-M8Q |
| Satellite Systems | GPS, Galileo, Beidou |
| No. of satellites | >12 |
| Tracking | -167dBm |
| Capture | -160dBm |
| Cold-Start | -148dBm |
| Hot-Start | -157dBm |
| Cold-Start Time | approx. 26s |
| Hot-Start Time | approx. 1s |
| Positioning Accuracy | 0,3 degree |
| Speed Measurement Accuracy | 0,05m/s |
| Time Accuracy | RMS 99% 30ns |
| LED | Yes |
| Frequency Range | 1559MHz - 1606 MHz |
| Update-Frequency | 10Hz |
| Temperature Range | -15°C to 60°C |
| Max. Humidity | 20%-95% |
| Waterproof | PPX6 standard |
| Dimensions | 52.4x50x18.5mm |
| Weight | 30g |
Specifications
| Product name | GPS sensor |
|---|---|
| Input power | 4.0~8.4V |
| Data interface | i-BUS/(sens) |
| Dimensions | 52.4*50*18.5mm |
| Weight | 30g |
