FRM303 RF Modul
- Model
- FRM303
- Item no.
- FS073
- EAN
- 4046032100581
- Category
- RF modules and adapters

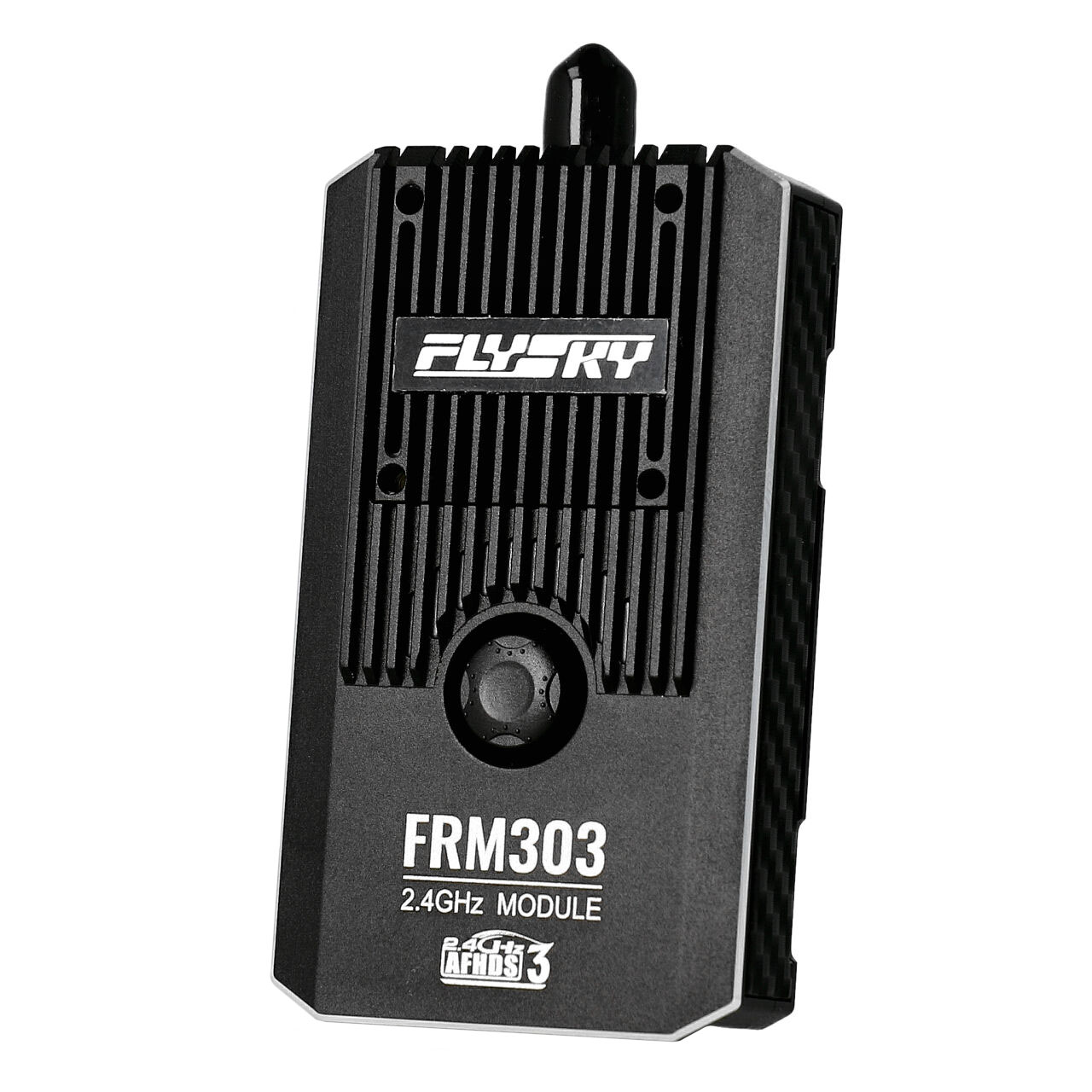

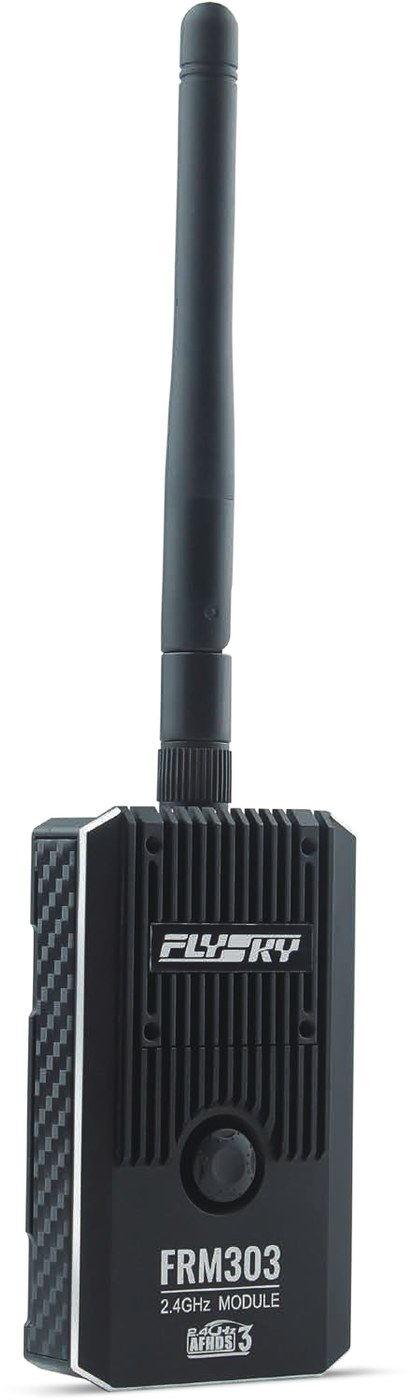

FRM303 is a multi-function high performance RF module in compliance with the AFHDS 3 third generation automatic frequency hopping digital system protocol. It features an external replaceable single antenna, support of bi-directional transmission, three power supply methods, support of voltage alarm function in case of external power supply, and support of inputting PPM, S.BUS and UART signals.
Adaptive devices — PPM: devices that can output standard PPM signals, such as FS-TH9X, FS-ST8, FTr8B receiver; S.BUS: devices that can output standard S.BUS signals, such as FS-ST8, FTr8B receiver; closed source protocol 1.5M UART: PL18; open source protocol 1.5M UART: EL18; open source protocol 115200 UART: devices that can output open source protocol 115200 UART signal.

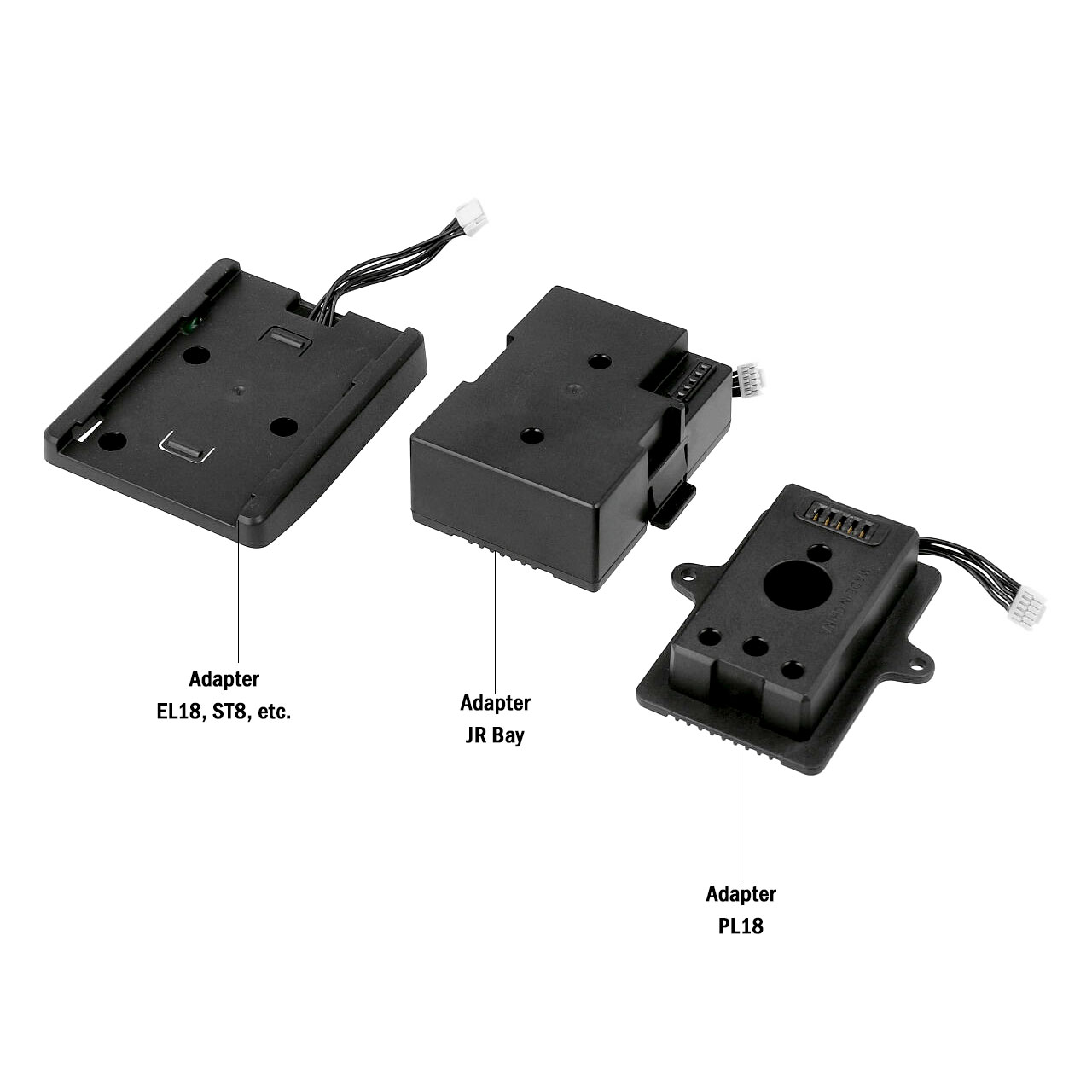

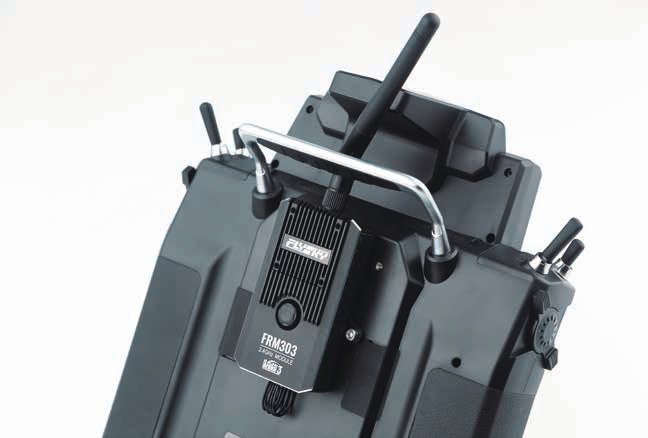

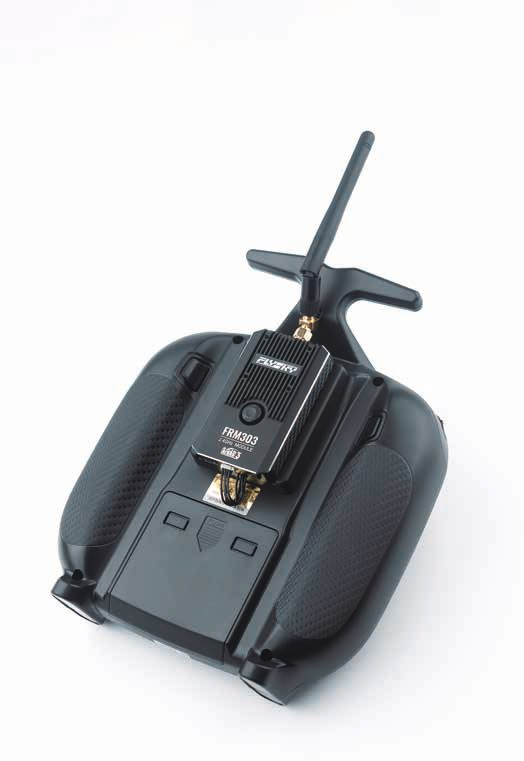

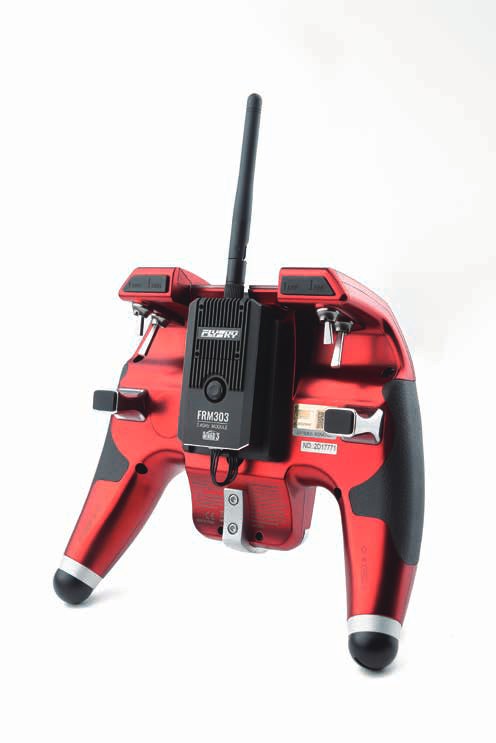

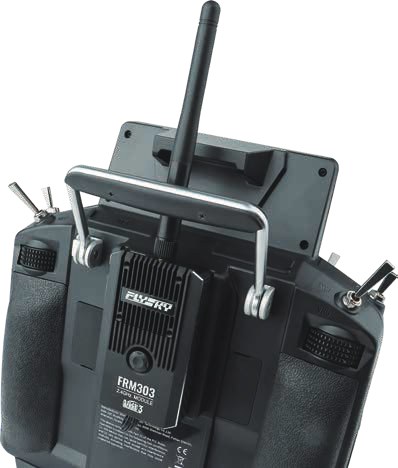

Compatible combinations: PL18 + FRM303 + FGPZ01 adapter, EL18 + FRM303 + FGPZ03 adapter, ST8 + FRM303 + FGPZ03 adapter, PL18 Ultra + FRM303 + FGPZ03 adapter, FRM303 + FGPZ02 adapter. Supports ELRS.
Specifications
| Adaptive models | Fixed-wing aircraft, racing drones, relays, etc. |
|---|---|
| Number of channels | 18 |
| Resolution | 4096 |
| RF | 2.4GHz ISM |
| Online update | Yes |
| 2.4G protocol | AFHDS 3 |
| Maximum power | Factory power < 20dBm (e.i.r.p.) (EU); developer firmware power ≤33dBm |
| Distance | > 3500m (air distance without interference) |
| Antenna | External single SMA antenna (outer-screw-inner-pin) |
| Input power | XT30 interface: 5~28V/DC; signal interface: 5~10V/DC; USB port: 4.5~5.5V/DC |
| Working current | 98mA/8.4V (external power supply), 138mA/5.8V (internal power supply), 135mA/5V (USB) |

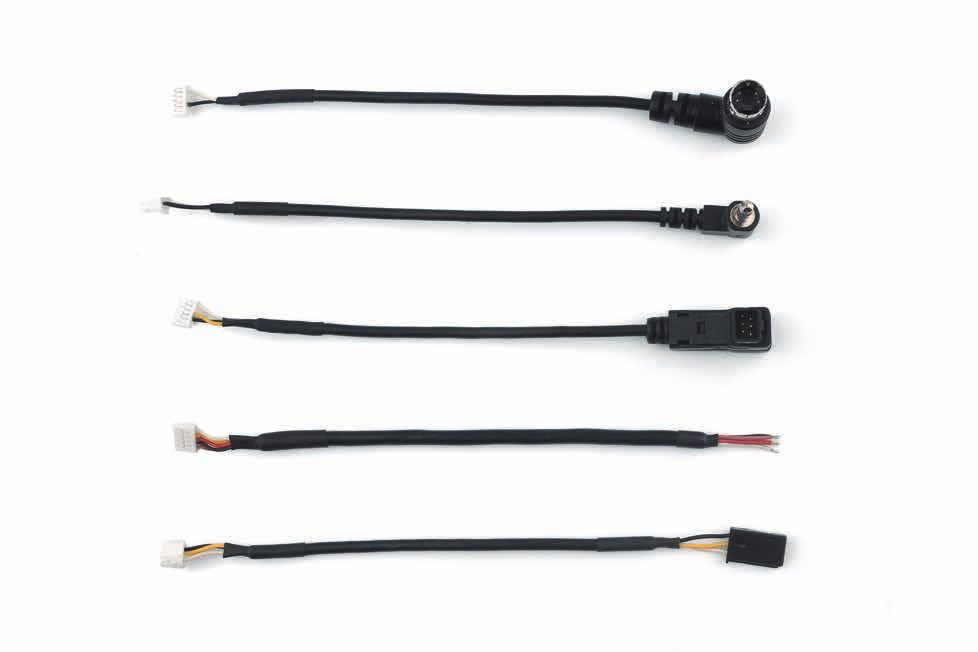

| Data interface | PPM, UART and S.BUS |
| Temperature range | -10℃ ~ +60℃ |
| Humidity range | 20% ~ 95% |
| Dimensions | 75*44*15.5mm (excluding antenna) |
| Weight | 65g (excluding antenna and adapter) |
| Certifications | CE, FCC ID: 2A2UNFRM30300 |
