FTr8B
AFHDS3- PWM channels
- 8
- Antenna
- Dual antennas
- Data port / output
- PWM/PPM/i.BUS out/S.BUS
- Dimensions
- 46 x 23.8 x 14.8mm
- Weight
- 11.3g

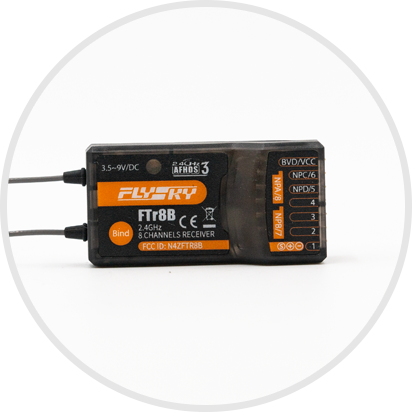

The FTr8B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antennas this receiver is specially designed for the installation and output of PWM/PPM/i-BUS (out) and S.BUS signals.
Technical Specifications
| PWM-Channels | 8 |
|---|---|
| RF | 2.4GHz |
| Protocol | AFHDS 3 |
| Antennas | Dual |
| Input Voltage | 3.5-9V |
| Output | PWM/PPM/i-BUS (out)/S.BUS |
| Temperature | -10°C to +60°C |
| Max. Humidity | 20%-95% |
| Update | Yes, online |
| Dimensions | 46x26.8x14.8mm |
| Weight | 11.3g |
| Suitable for | Fixed wing, glider, helicopter, deltta wing, etc. |
| Compatible Transmitter | all AFHDS3-Transmitter |
| Product Designation | FTr8B |
|---|---|
| Compatible transmitters | all AFHDS 3 transmitters and RF Modules (PL18, NB4, NB4 Lite, etc.) |
| Model Type | fixed wing, glider, helicopter, delta wing, engineering vehicle, etc |
| PWM Channels | 8 |
| RF | 2.4GHz |
| 2.4G Protocol | AFHDS 3 |
| Antenna | Dual Antennas |
| Input Power | 3.5-9V |
| Data Output | PWM/PPM/i.BUS out/S.BUS |
| Temperature Range | -10℃ to +60℃ |
| Humidity Limit | 20%-95% |
| Online Update | Yes |
| Dimensions | 46*23.8*14.8mm |
| Weight | 11.3g |
| Certification | CE，FCC ID: N4ZFTR8B |
Specifications published by www.flysky-cn.com
