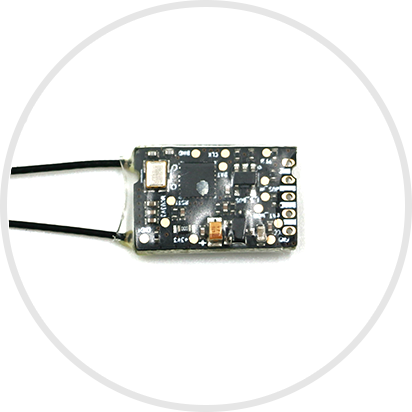

FS-SRM
ANT- PWM channels
- 1
- Antenna
- Two antennas
- Data port / output
- PWM/PPM/i-BUS/S.BUS
- Dimensions
- 19 x 12.1 x 3mm
- Weight
- 1.1g
The SRM receiver is the ideal partner when using a Flysky remote control and is specially designed for the installation and output of PWM signals. Therefore it is supported by all ANT-capable transmitters.
Technical Specifications
| PWM-Channels | 1 |
|---|---|
| RF | 2.4GHz ISM |
| Protocol | ANT |
| Antennas | Dual |
| Input Voltage | 3.5-9V |
| Range | >1000m (air) |
| Output | PWM/PPM/i-BUS/S.BUS |
| Resolution | 4096 |
| Temperature | -10°C to +60°C |
| Max. Humidity | 20%-95% |
| Update | Ja |
| Dimensions | 19x12.1x3mm |
| Weight | 1.1g |
| Compatible Transmitter | all ANT-Transmitter |
| Product Model | FS-SRM |
|---|---|
| RF | 2.4GHz |
| Protocol | ANT |
| Antenna | Dual Antenna (ipex4) |
| RSSI | Support |
| Data Output | PWM、PPM、i.BUS、s.BUS |
| Temperature Range | -10℃—+60℃ |
| Humidity Limit | 20%-95% |
| Online Update | Yes |
| Dimensions | 19*12.1*3mm |
| Weight | 1.1g |
| Certification | CE，FCC ID:2A2UNSRM00 |
Specifications published by www.flysky-cn.com
