FS-A3
AFHDS2A- PWM channels
- 3
- Antenna
- Single antenna (150mm)
- Data port / output
- PWM
- Dimensions
- 35 x 22 x 12mm
- Weight
- 6g

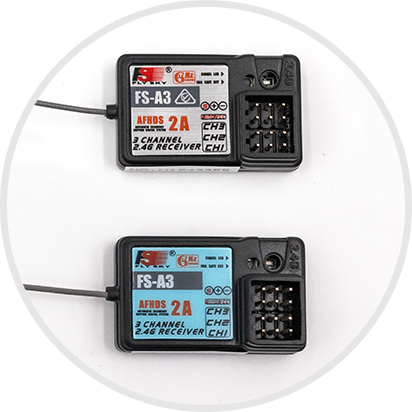

Flysky FS A3 3-channel receiver compatible with GT2E/GT2G/GT2F/IT4S/GT5/I4X/I6/I6X/I6S/TH9A/TM10/I8/I10
Technical Specifications
| Channels | 3 |
|---|---|
| RF | 2.4GHz |
| Protocol | AFHDS 2A |
| Input voltage | 4-6.5V |
| Size | 35 x 22 x 12mm |
| Weight | 6g |
| Range | 500 - 1500m (air) |
| Suitable for | Cars, boats, aircraft models, etc. |
| Product Model | FS-A3 |
|---|---|
| PWM channels | 3 |
| Wireless frequency | 2.4GHz |
| Wireless protocol | AFHDS 2A |
| Range | 500 ～ 1500m (in the air) |
| Antenna type | single antenna (150mm) |
| Power | 4.0-6.5V |
| RSSI | Not supported |
| Data port | PWM |
| Temperature range | 0 ℃ — + 60 ℃ |
| Humidity range | 20% -95% |
| Online update | No |
| Dimensions | 35 * 22 * 12 mm |
| Weight | 6 g |
| Certification | CE, IC, RCM |
Specifications published by www.flysky-cn.com
Flysky does not publish a separate user manual for this receiver — it is covered by the manual of the transmitter it is bound to.
