FGr12B
AFHDS3- PWM channels
- 12 (v2.0 firmware)
- Antenna
- Dual antennas
- Data port / output
- PWM/PPM/i.BUS out/S.BUS
- Dimensions
- 39 x 32 x 15mm
- Weight
- 15g

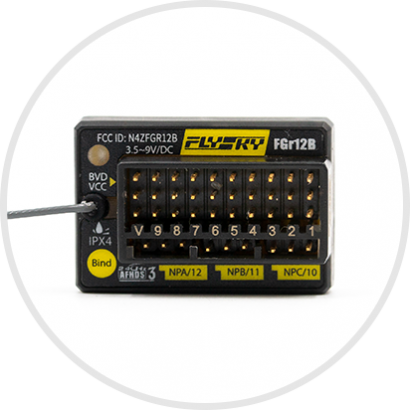

The FGr12B receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-bus signals. All AFHDS3-capable transmitters are supported.
Technical Specifications
| PWM-Channels | 12 |
|---|---|
| RF | 2.4GHz |
| Protocol | AFHDS 3 |
| Antennas | Single |
| Input Voltage | 3.5-9V |
| Output | PWM/PPM/i-BUS in |
| Temperature | -10°C to +60°C |
| Max. Humidity | 20%-95% |
| Update | Yes, online |
| Dimensions | 37x25x17.5mm |
| Weight | 11.2g |
| Suitable for | Cars, Boats, etc. |
| Compatible Transmitter | all AFHDS3-Transmitter and RF-Modules (PL18, NB4, NB4 Lite etc.) |
| Product Model | FGr12B |
|---|---|
| Adaptive transmitter | all transmitter supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.) |
| Model Type | Car/Boat ect. |
| PWM Channels | 12 |
| RF | 2.4GHz |
| 2.4G Protocol | AFHDS 3 |
| Antenna | Single Antenna |
| Input Power | 3.5-9V |
| Data Output | PWM\PPM\i-bus in |
| Temperature Range | -10℃—+60℃ |
| Humidity Limit | 20%-95% |
| Online Update | Yes |
| Dimensions | 37*25*17.5mm |
| Weight | 11.2g |
| Certification | CE，FCC ID:N4ZFGR12B |
Specifications published by www.flysky-cn.com
